Facility Capacity
| Capacity | 300 Tons/month |
|---|---|
| Project equipment Fabrication – pressure vessel, heat exchanger, column etc. | 75 |
| Structural work & heavy equipment fabrication work for Mining And Construction Equipment Division. | 225 |
Total Plant Area
| Total Plant Area | 13800 SQM |
|---|---|
| Area Under Crane | 7961 |
| Open Area | 5839 |
Cranes
| Cranes | 14 Nos |
|---|---|
| 10 Tons | 11 |
| 5 Tons | 3 |
Total No of Employees
| Total No of Employees | 170 Nos |
|---|---|
| Engineers | 26 |
| Skilled Labour | 60 |
| Semi Skilled Labour | 65 |
| Operators | 19 |
Other Machines
| Machines | Description |
|---|---|
| Plasma Cutting | 3m X 12.5m SS – 50mm Thk, CS – 250mm Thk |
| Paint Booth | 4m X 4M X 15M long |
| Shot Blasting Booth | 4m X 4M X 15M long |
FERMAT MAKE HMC
SIZE
X-6100mm, Y-3000mm, Z- 2500mm
SPINDLE DIA
150mm
Ram(V Travel)
700 mm
SPINDLE STROKE(W travel)
850mm
ROTARY TABLE SIZE
2500 X 3500mm
LOADING CAP
40 TON
CNC Control
Heidenhain TNC 640
Touch Probe
Heidenhain TS460

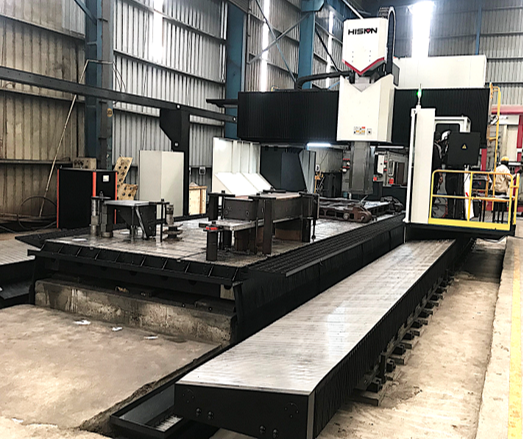

HISION MAKE VMC
SIZE
X-9000mm, Y-3600mm, Z- 1250mm
Spindle nose to table surface
150mm to 1400mm
CNC Control
Siemens 840Dsl
Table Size
2500mm x 8000mm

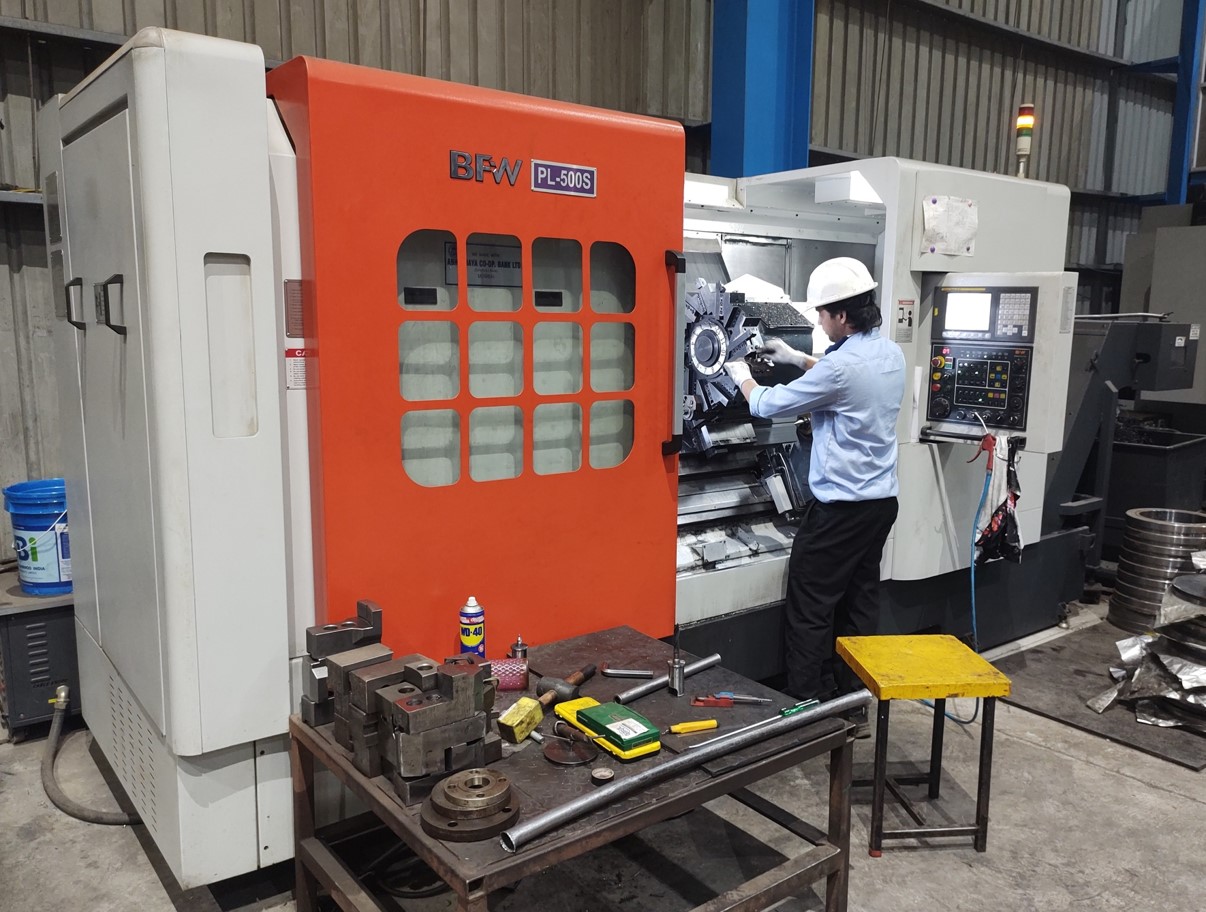

BFW make CNC Lathe
Length Between Center
1000mm
Dia
550mm
Chuck Dia
400mm

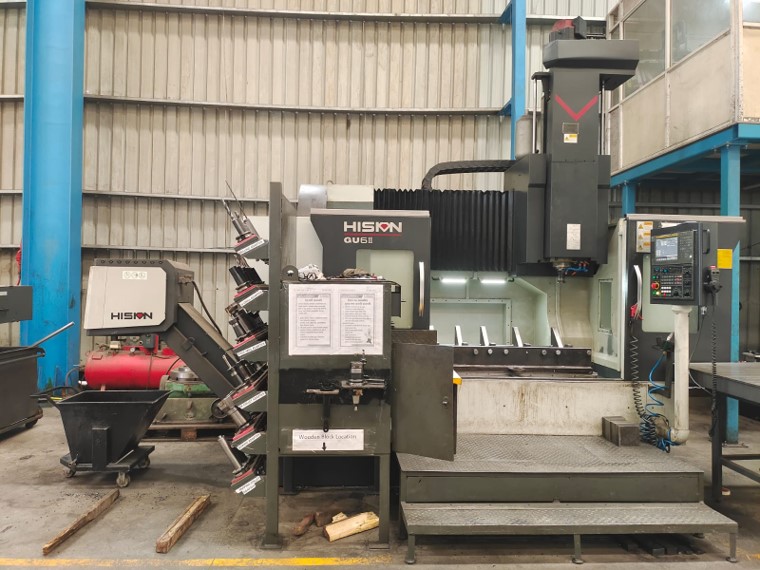

HISION make VMC Model - GU6II
SIZE
X-1500mm Y-850mm Z-700mm
Table
1500 mm X 850 mm With ATC and CTS
HISION make VMC Model – 1000II
SIZE
X-990mm Y-600mm Z-600mm
Table
1100 mm X 600 mm With ATC and CTS
Motorized Welding Positioner
Motorized Welding Positioner - 1
Dia – 2.5 mtrs
Load – 3 Ton
Rotation – 0 to 90 deg & 360 deg
Motorized Welding Positioner - 2
Dia – 800 mm
Load – 700 kgs
Rotation – 0 to 90 deg & 360 deg

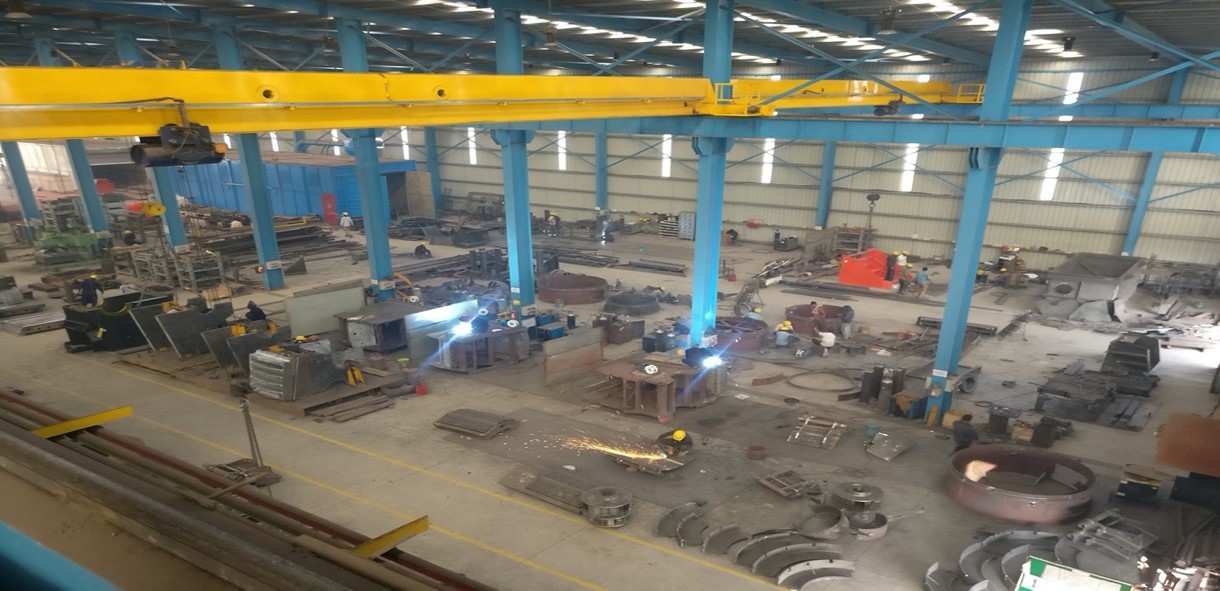

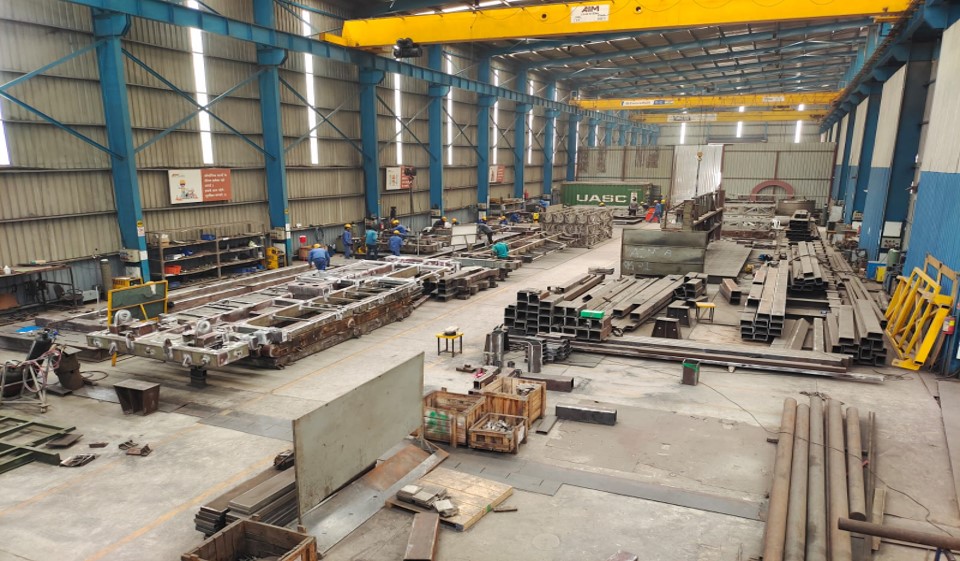

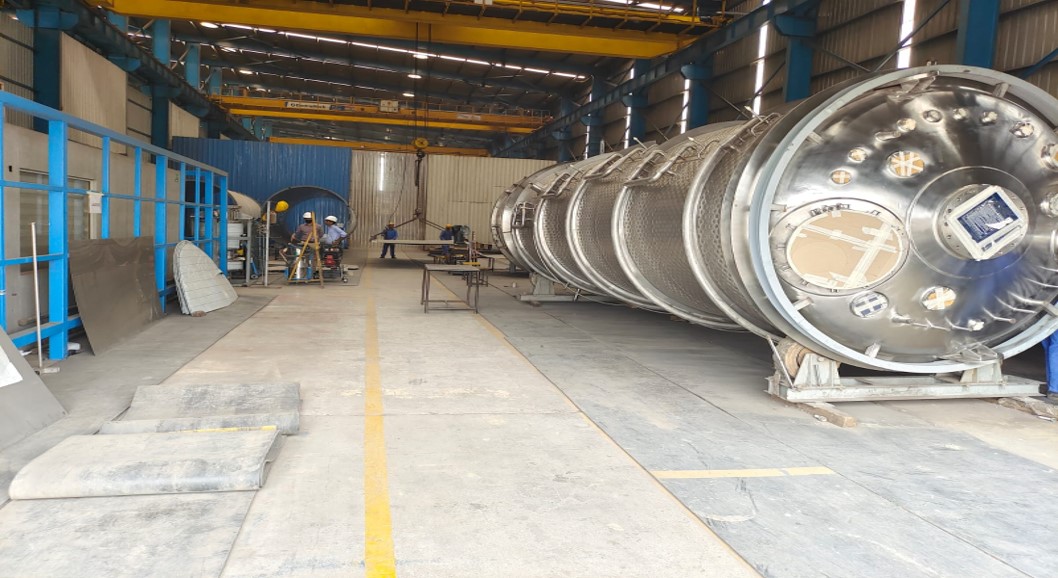

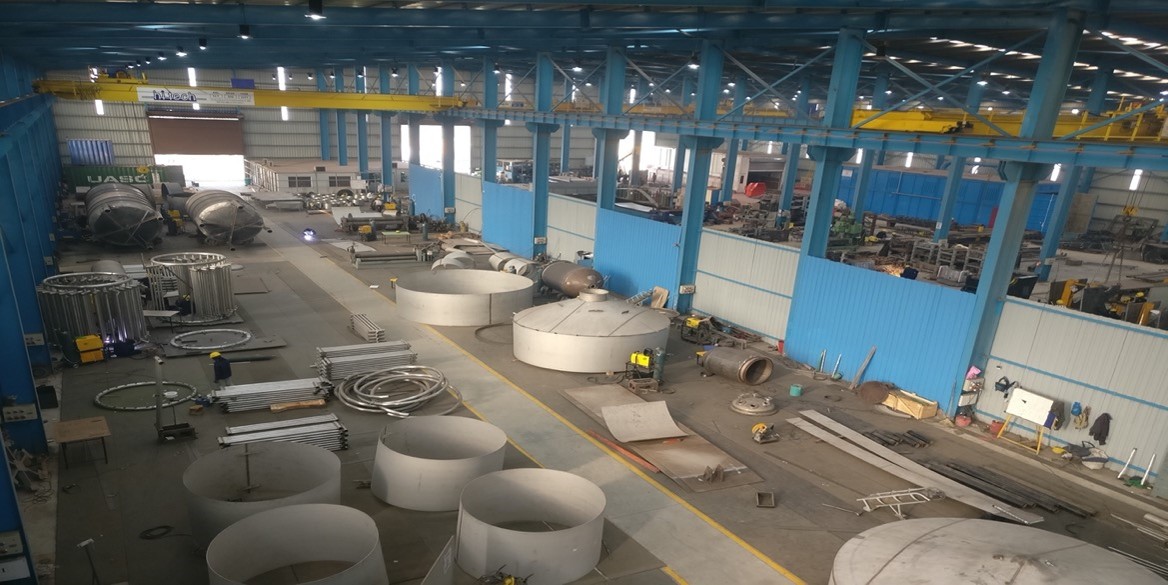

Insides of AIM Plant

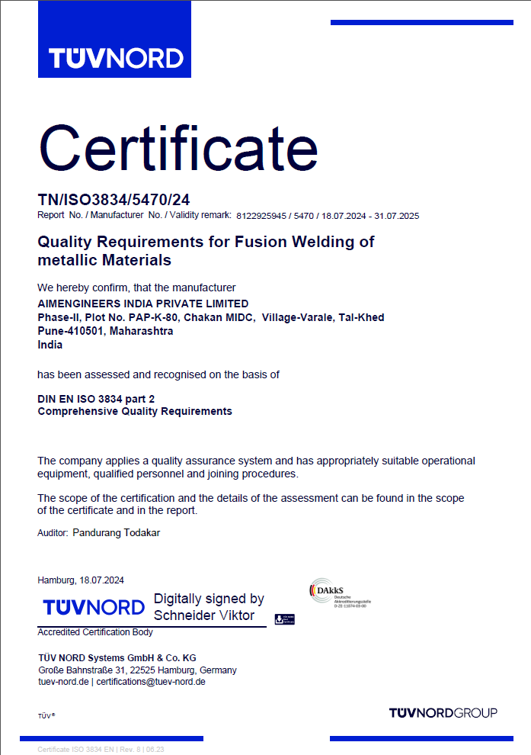

Certificates

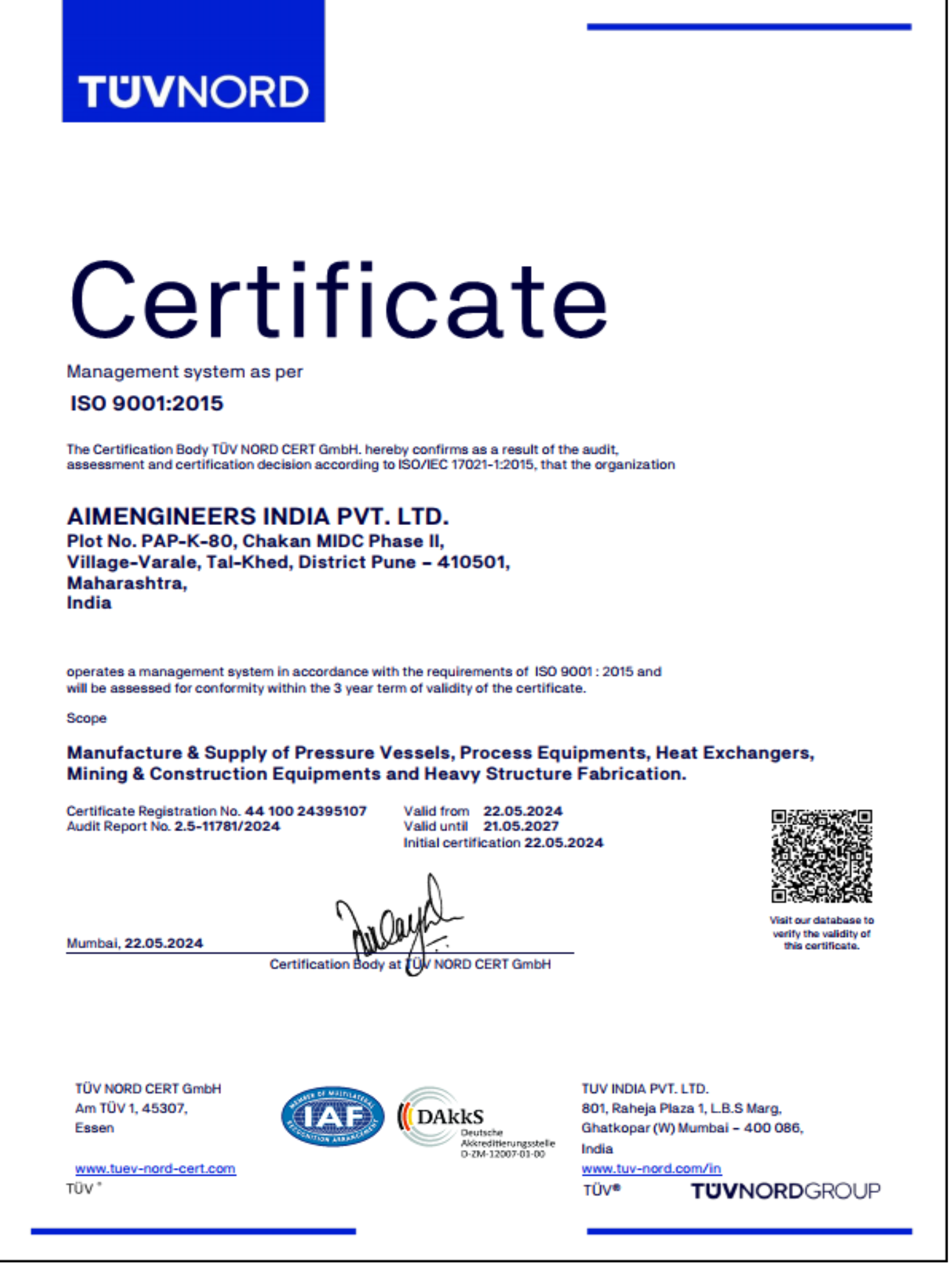

Quality Management System: ISO 9001:2015
